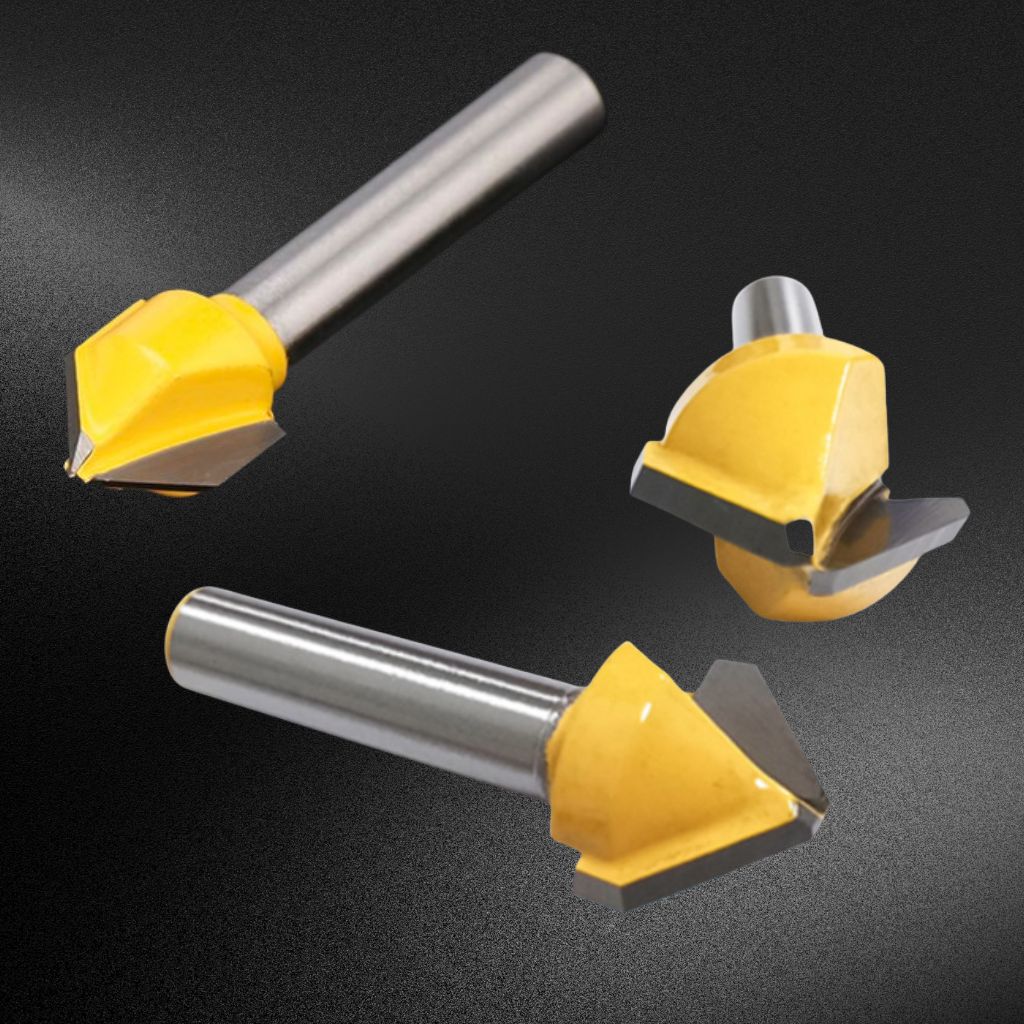

PROMASTERTOOL™ V-Groove Router Bit - 1/4" Shank

Add crisp V-groove detail to your woodwork

Give plain panels, wood signs and furniture details a more defined finish with the PROMASTERTOOL™ V-Groove Router Bit. Its pointed cutting profile creates V-shaped recesses, from narrow decorative lines to wider grooves as the cutting depth increases.

The 1/4" shank fits a matching router collet, while the 1/2" cutting diameter gives you a compact cutter for detail work.

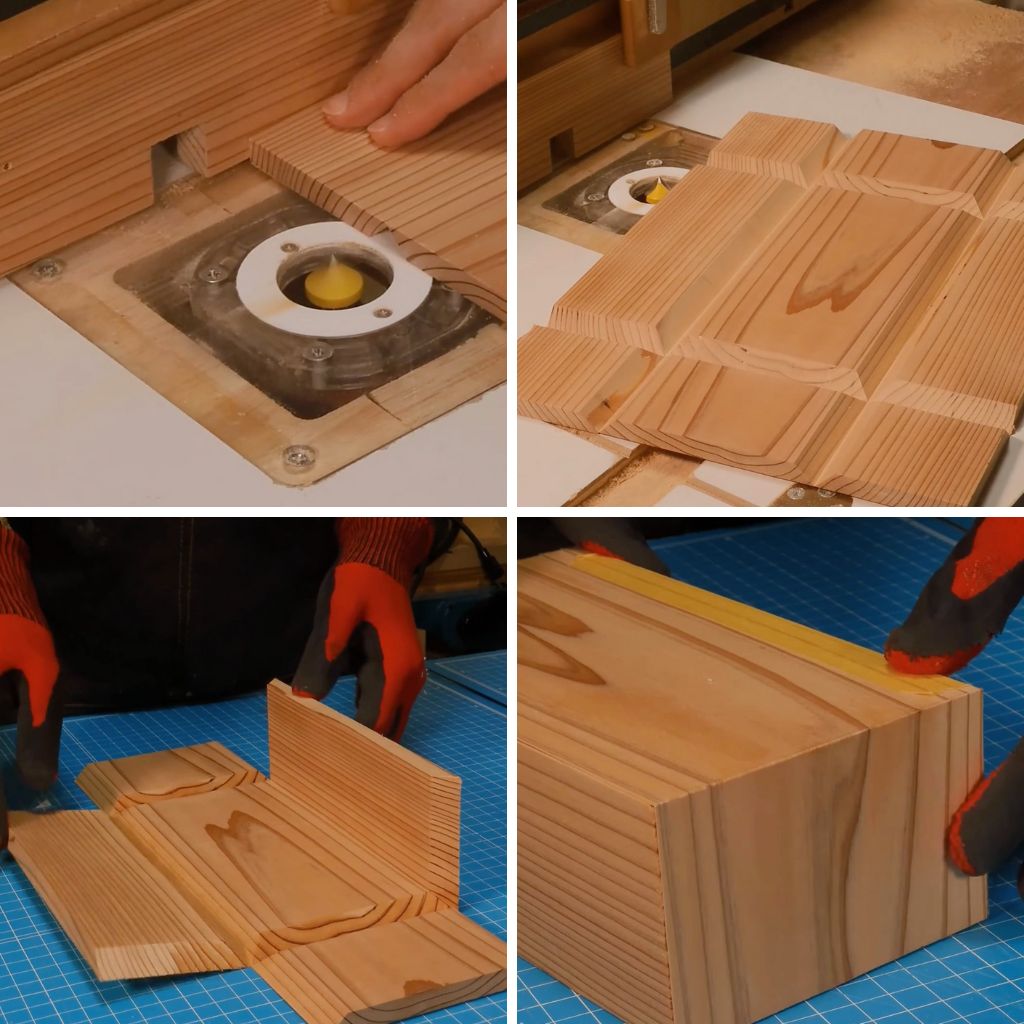

Details for signs, panels and trim

• Decorative grooving: add straight lines and repeating accents to wood panels and furniture parts.
• Engraving and lettering: trace a planned design using an appropriate guide, jig or compatible routing setup.
• Control the line width: use a shallow pass for a fine line and increase depth gradually for a wider V, within the cutter's working limits.

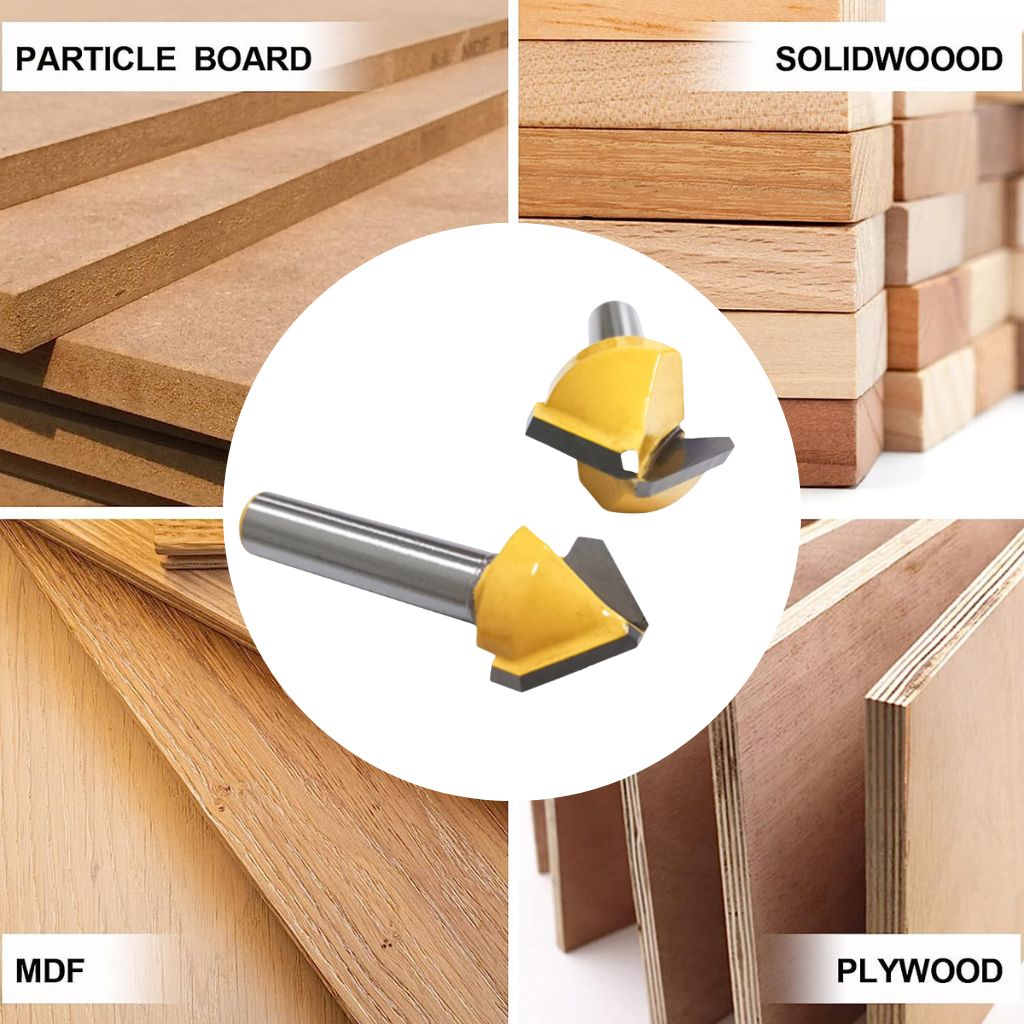

Made for wood and wood-based panels

The hardened steel body carries carbide cutting edges and a yellow-coated finish. Use the bit for softwood, hardwood, MDF, plywood and particleboard, with the setup and feed suited to the material. Test on an offcut first, particularly when working with a veneered or laminated surface.

Set up the cut before the finished piece

Secure the workpiece and use a guide or fence where appropriate. Make a test groove to check its width, depth and finish, then build up deeper cuts in light passes. Use a compatible router with a 1/4" collet and follow the tool's operating limits.

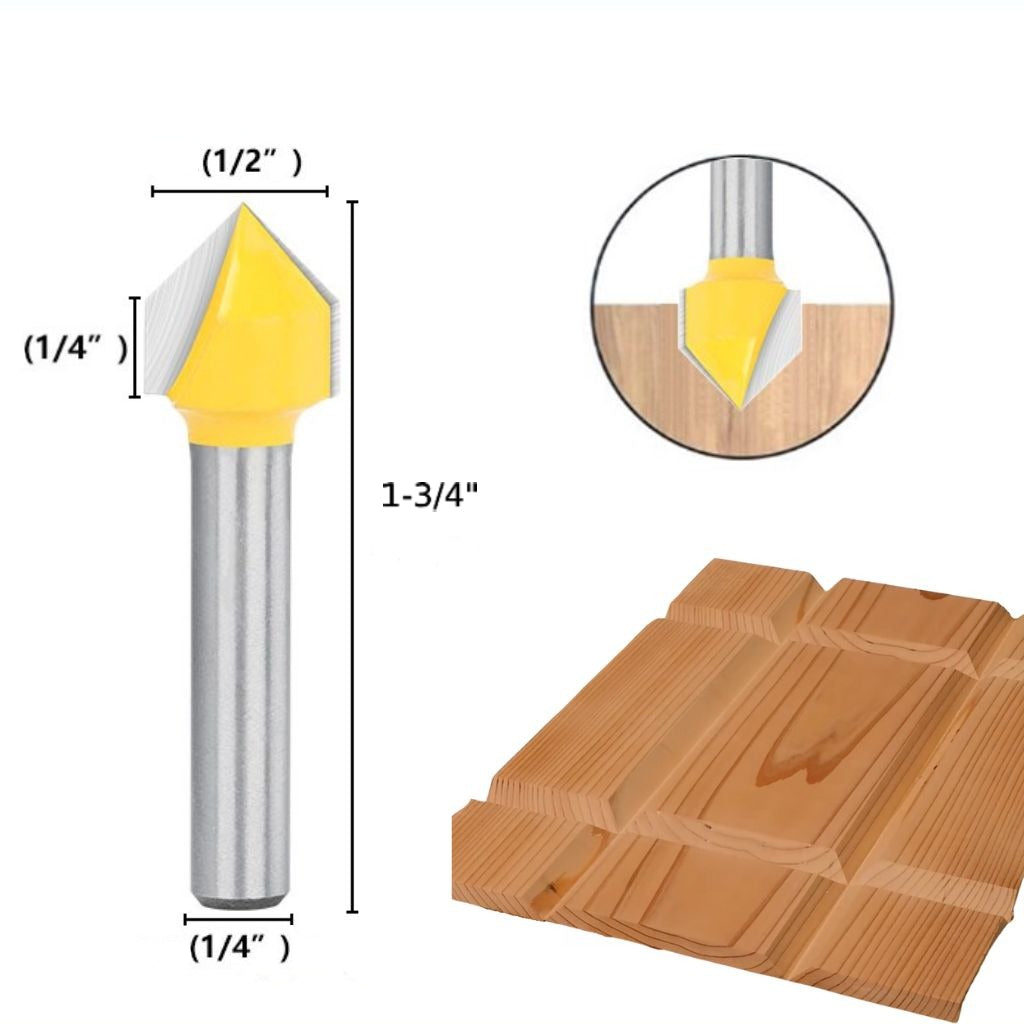

Specifications

• Shank diameter: 1/4" (6.35 mm)
• Cutting diameter: 1/2" (12.7 mm)
• Overall length: 1-3/4" (44.45 mm)
• Construction: hardened steel body with carbide cutting edges

Choose your quantity: one bit or the three-bit bundle using the options above. Product detail images show different views of the same bit. Wood samples and workshop equipment are not included.
