PROMASTERTOOL™ Planer & Dado Router Bit - 1/2" Shank

Flatten wide surfaces. Cut clean, flat-bottom recesses.

Prepare slabs, panels and workbench tops with the PROMASTERTOOL™ Planer & Dado Router Bit. Its broad 2-1/4" cutting diameter covers more surface with each overlapping pass, while the flat cutting profile suits wide dados, rabbets and other material-removal tasks.

One bit for surfacing and wide cuts

• Slab and panel flattening: level broad workpieces with a stable router sled before sanding and finishing.

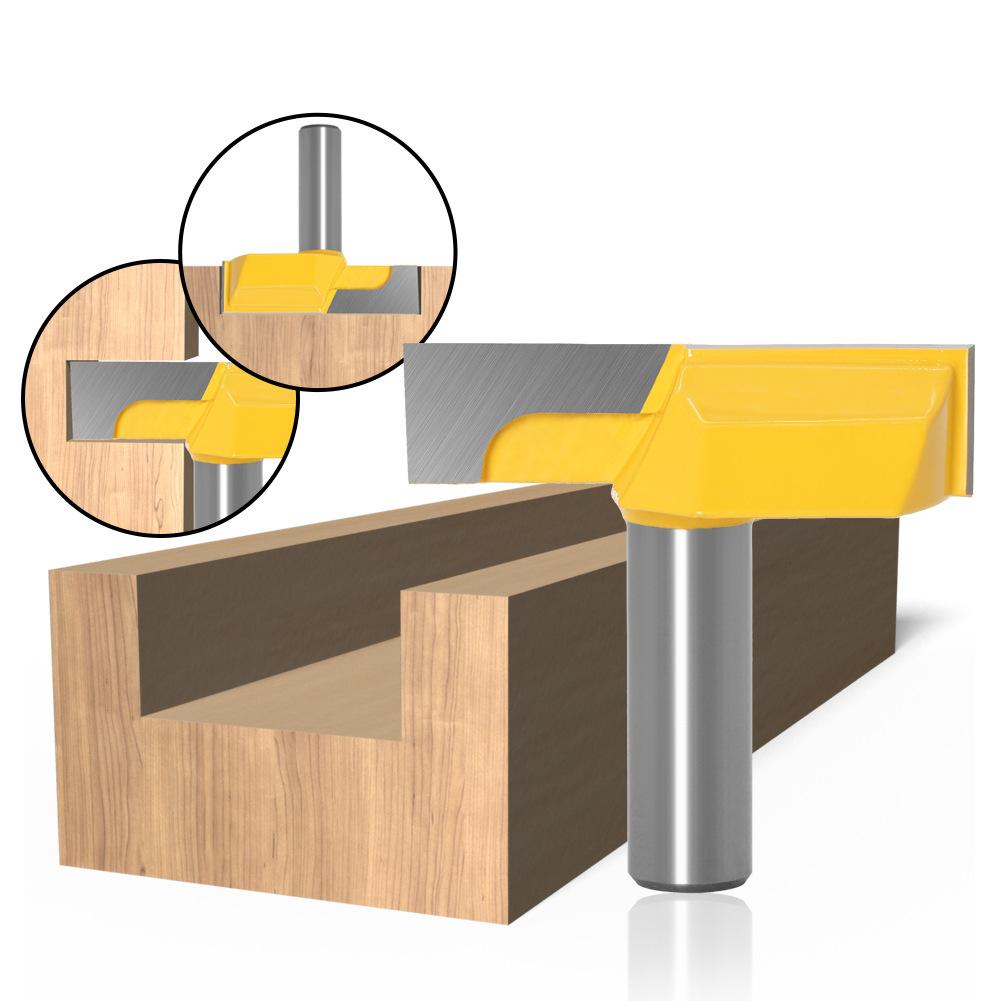

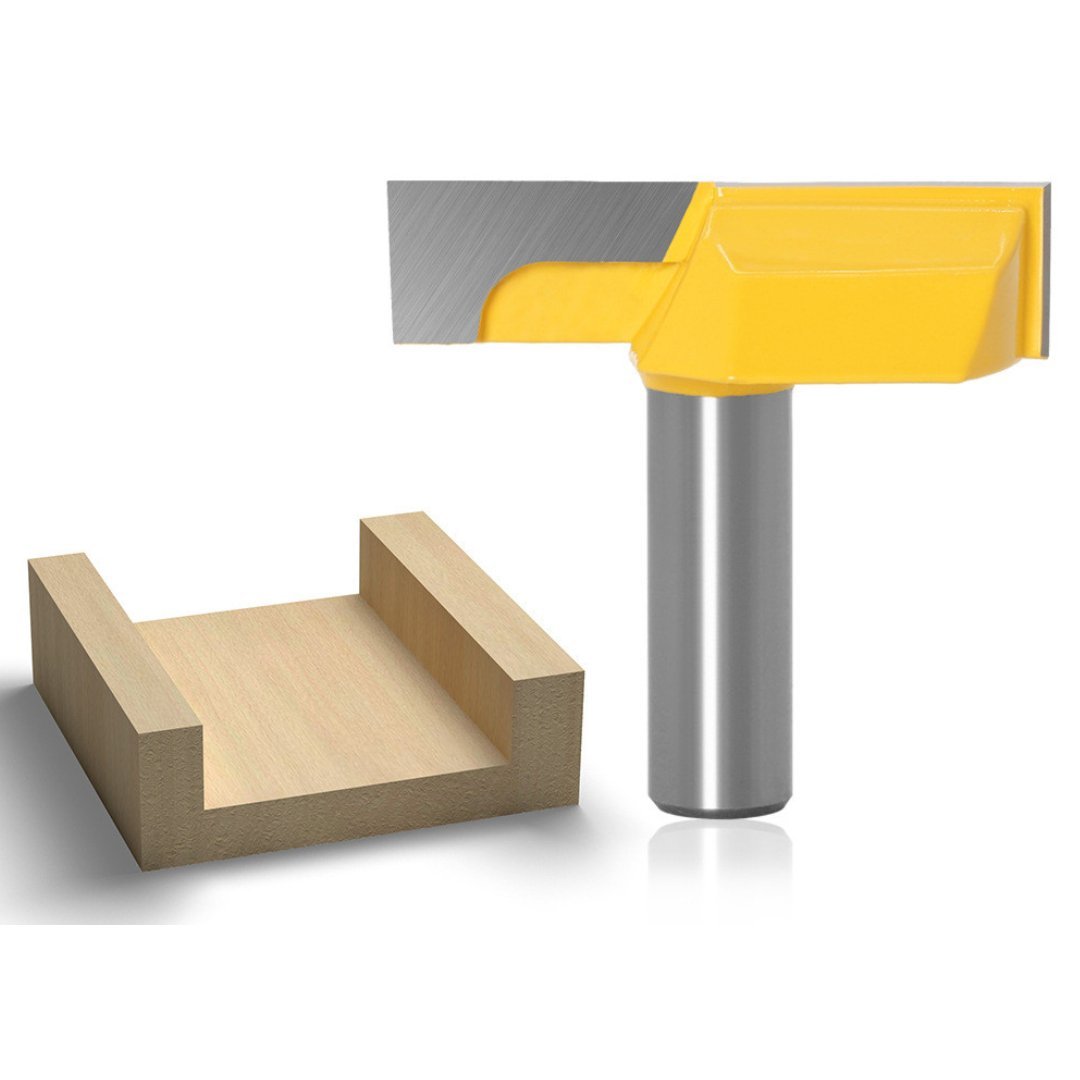

• Wide dados and recesses: create straight-sided channels with a flat base using a suitable guide or jig.
• Rabbets and tenon cheeks: remove material in controlled passes with the workpiece properly supported.

A broad cutter with a 1/2-inch shank

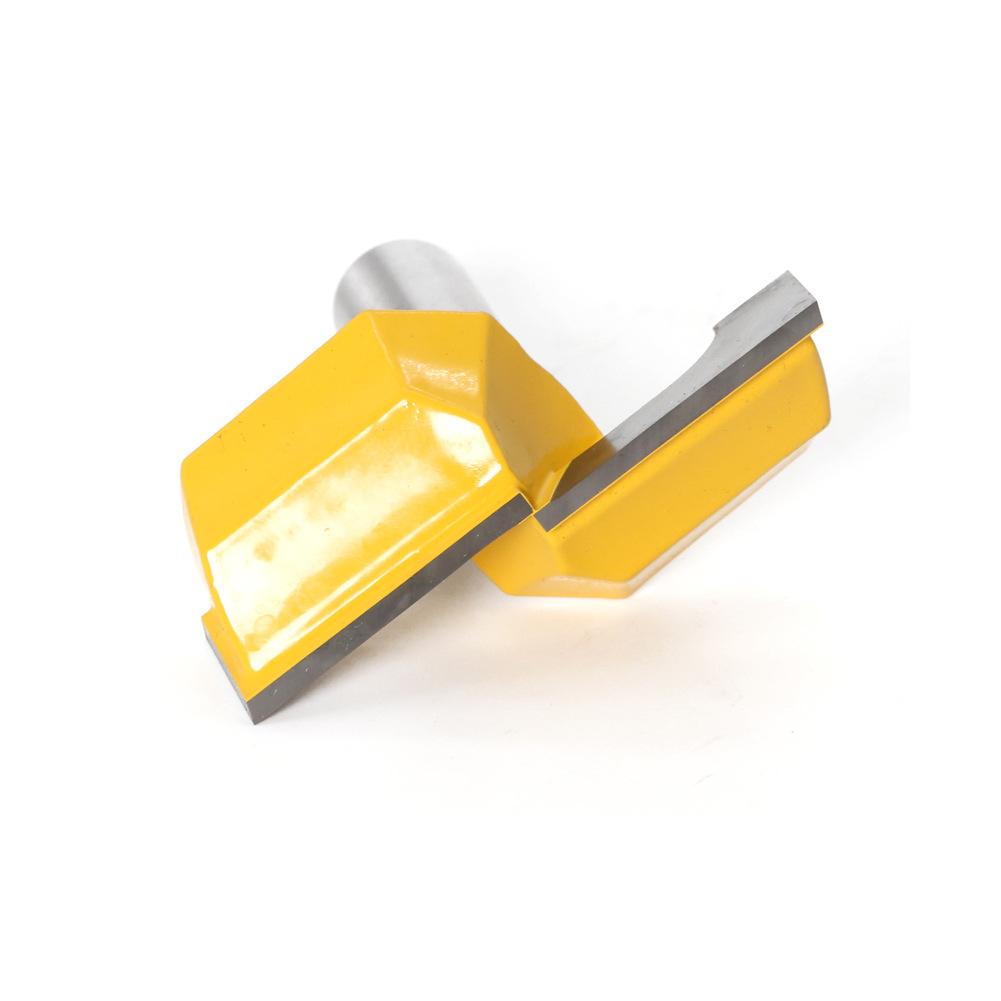

Two carbide-tipped cutting edges work across a wide cutting path. The 1/2" steel shank fits a matching 1/2" router collet. Use the broad cutting path to work across large surfaces, then sand the wood to your desired finish.

Build the setup around the cut

Use a suitable router table, flattening sled or other rigid guiding jig. For surfacing, keep the sled rails level and stable, secure the wood, and work in shallow, overlapping passes. For dados and rabbets, set the guide carefully and test the width and depth on scrap before cutting the finished part.

Check that your router, collet, base opening and jig accommodate the cutter diameter, and follow the equipment's speed and feed guidance. Cutting height is a tool dimension, not a recommendation to remove that depth in one pass.

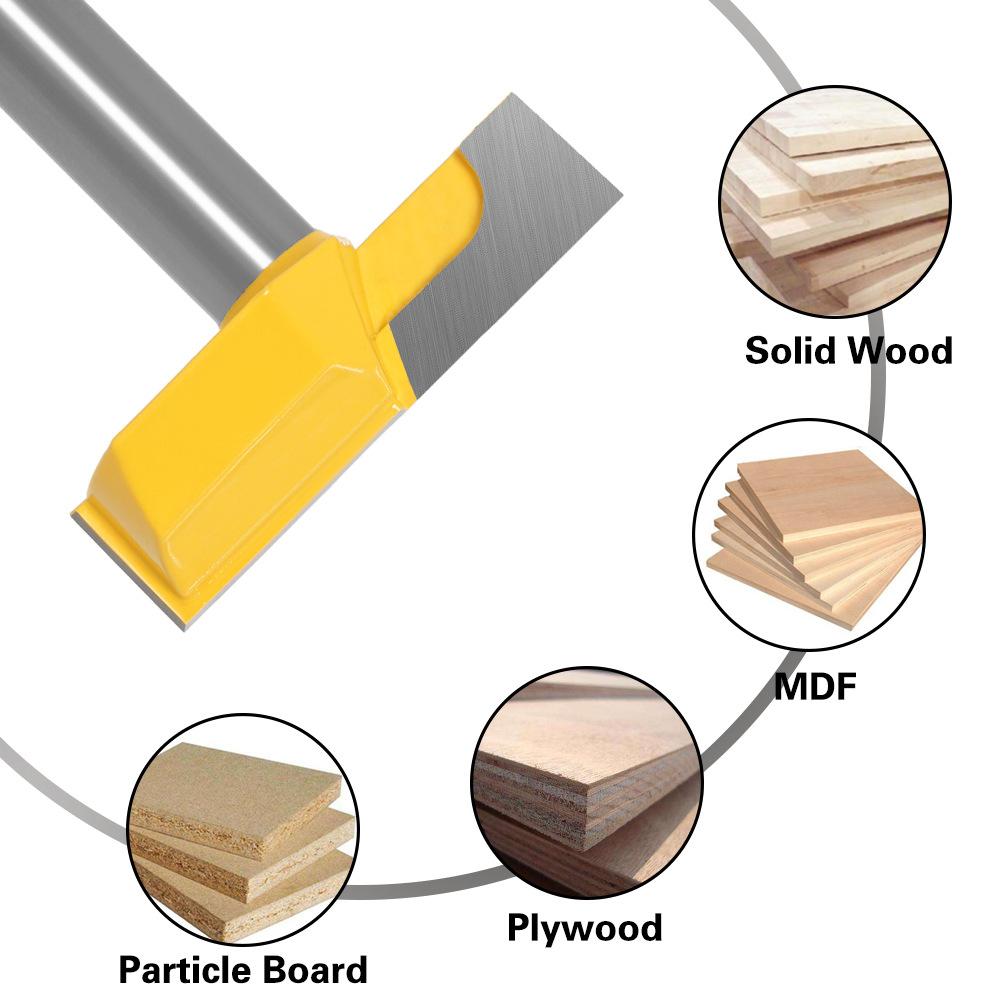

Suitable for hardwood, softwood, MDF, plywood and particle board. Test the cut on the actual material, especially veneered boards, and allow for final sanding after surfacing.

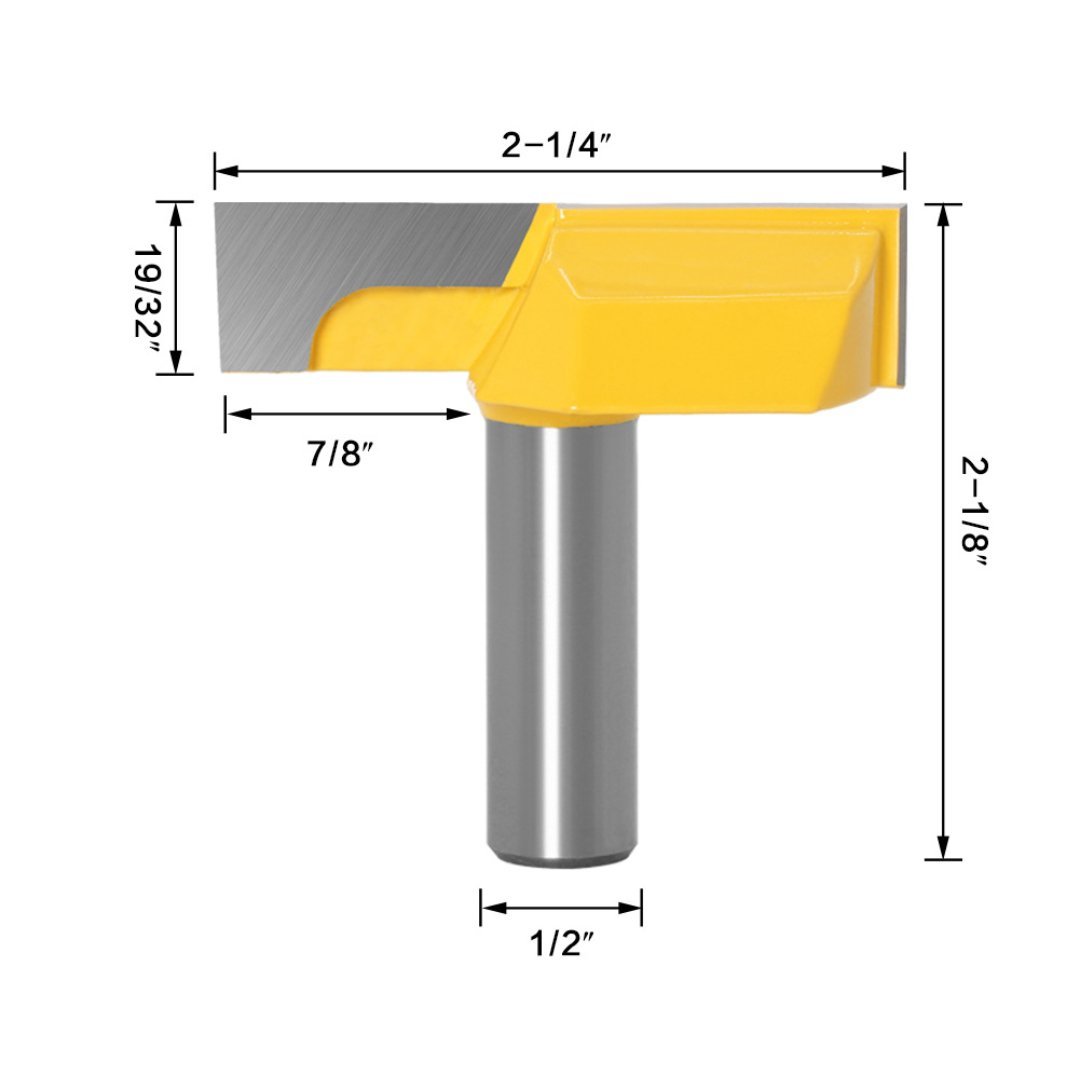

Dimensions and contents

• Cutting diameter: 2-1/4" (57.15 mm)
• Cutting height: 19/32" (15.08 mm)
• Overall length: 2-1/8" (53.98 mm)
• Shank diameter: 1/2" (12.7 mm)
• Cutting edges: 2
• Included: 1 planer and dado router bit

From a rough slab to a finished surface

A flat starting surface makes the next stages of a tabletop, counter or shelf project easier. After routing, sand and finish the wood for its intended use.

Dimensions are nominal. Workshop equipment, wood samples and finished projects are shown for context and are not included.
