Build interlocking joints for eight-sided projects
The PROMASTERTOOL™ 2-Piece Lock Miter Tenon Router Bit Set combines two complementary 22.5° cutting profiles with 1/2" (12.7 mm) shanks. Shape matching edges for octagonal assemblies and woodworking glue joints.

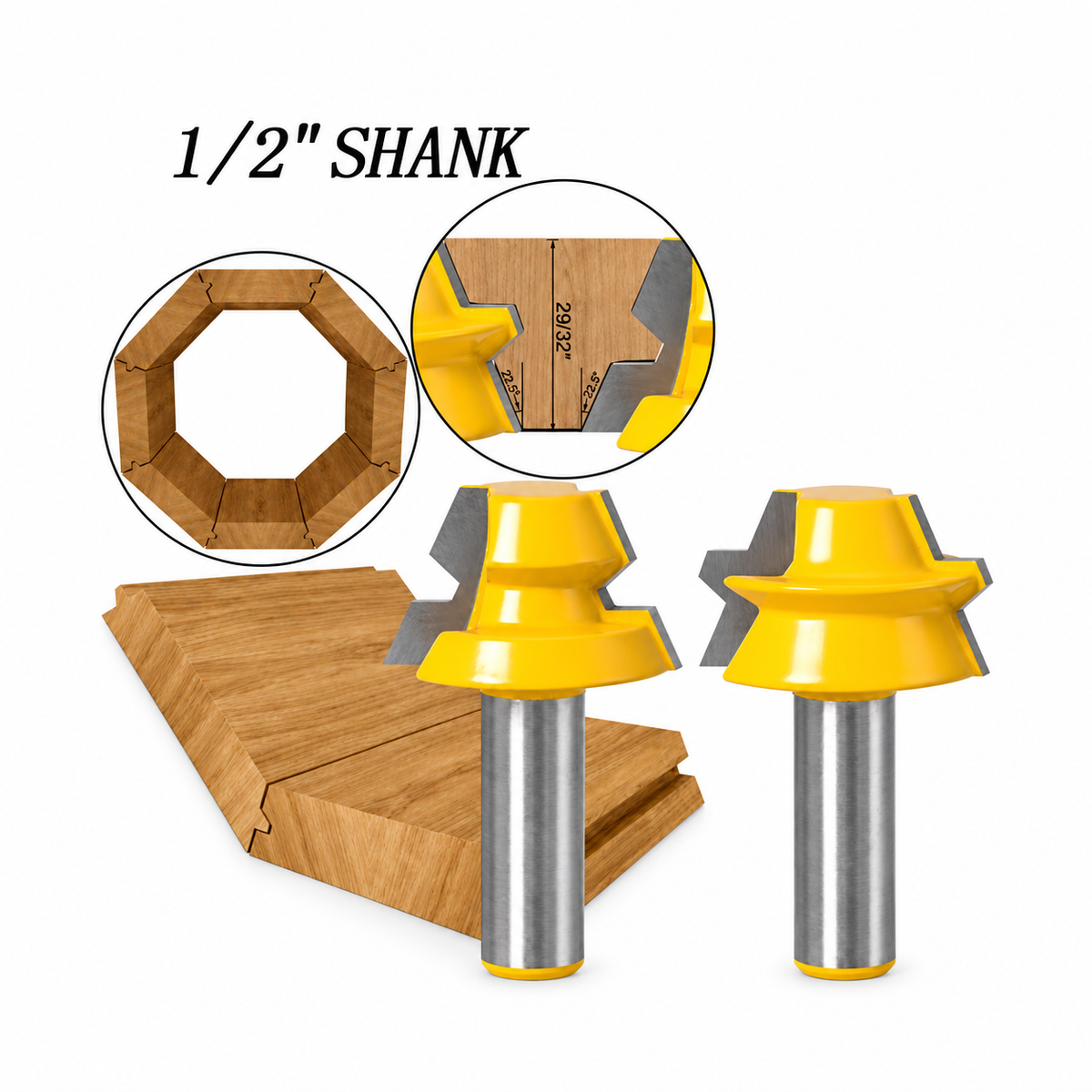

A matched pair for both sides of the joint
One cutter forms a projecting wood profile; the other forms the matching recess. The shaped edges fit together to help position adjoining pieces during assembly. The example below shows how these joints connect an eight-sided wooden assembly.
Purpose-built cutting profiles

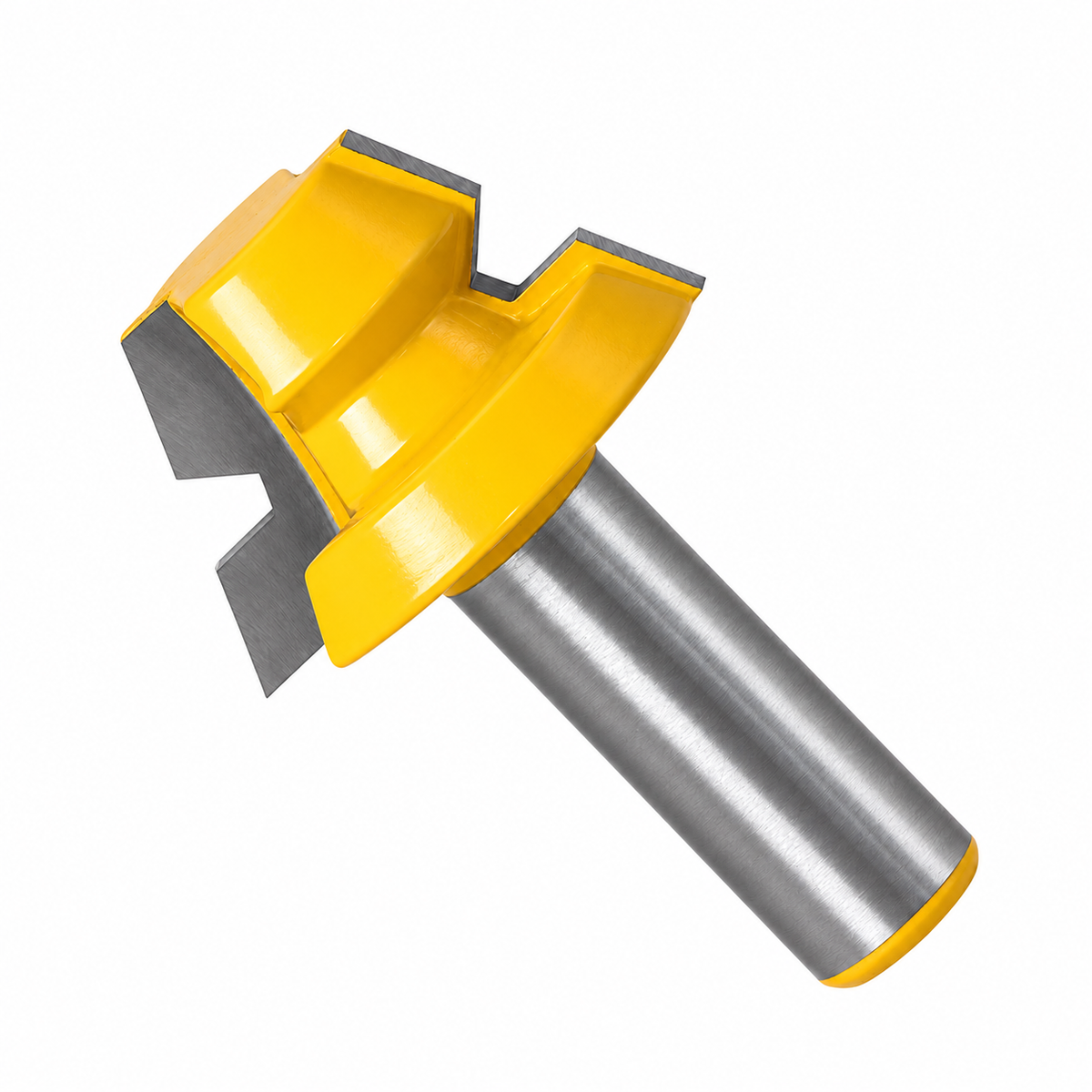

The set features hard-alloy cutting material, a yellow cutter body and a cylindrical steel shank. The close-up below shows the cutting edges and stepped profile. Use each bit with a router equipped with the correct 1/2" collet.
Dimensions at a glance
Both cutters share the dimensions shown in the product drawings.
| Profile angle | 22.5° |
|---|---|
| Shank diameter | 1/2" / 12.7 mm |
| Cutting diameter | 1-29/64" / approximately 36.9 mm |
| Cutting height | 29/32" / approximately 23.0 mm |
| Overall length | 2-3/8" / approximately 60.3 mm |
| Set contents | 2 complementary router bits |

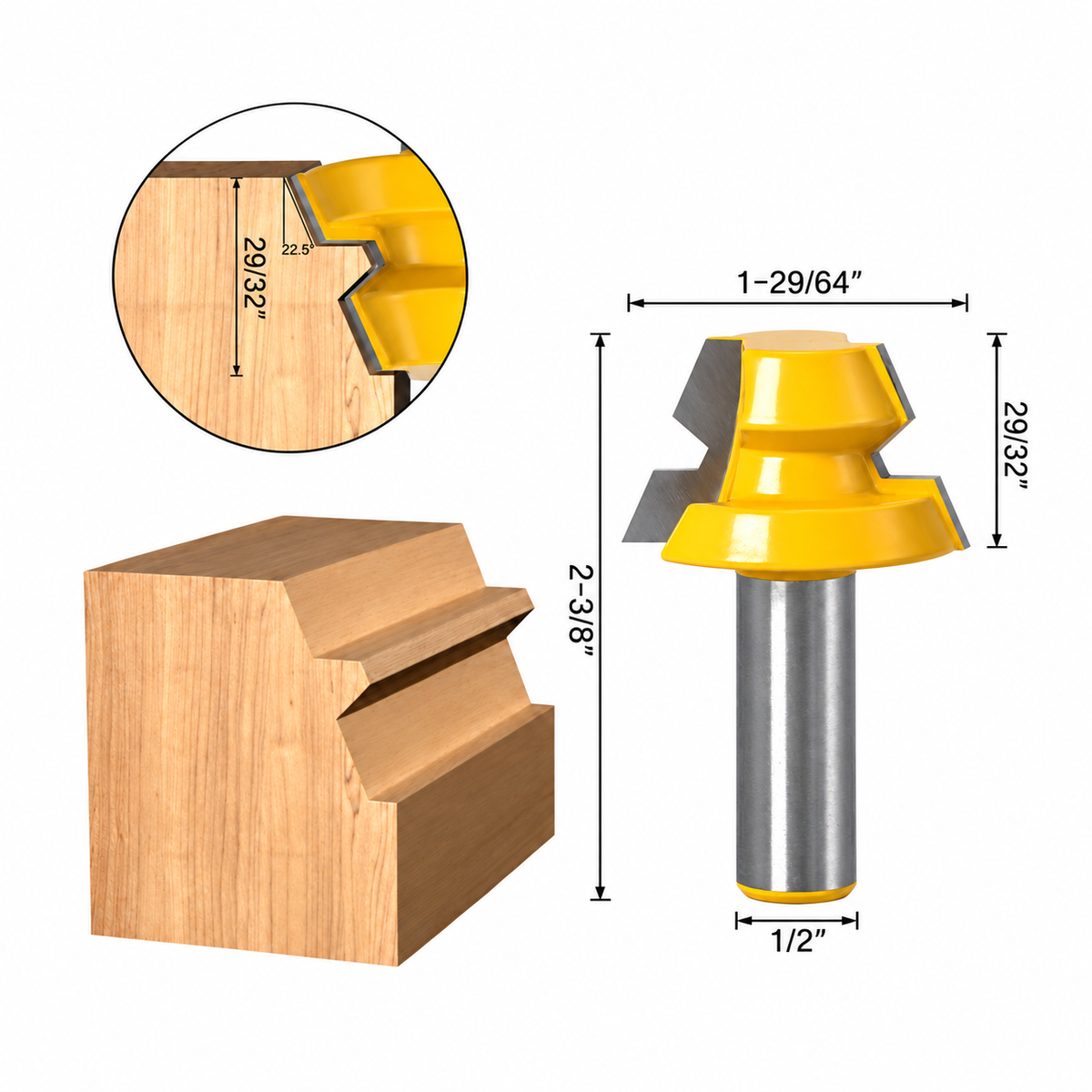

Recessed cutting profile

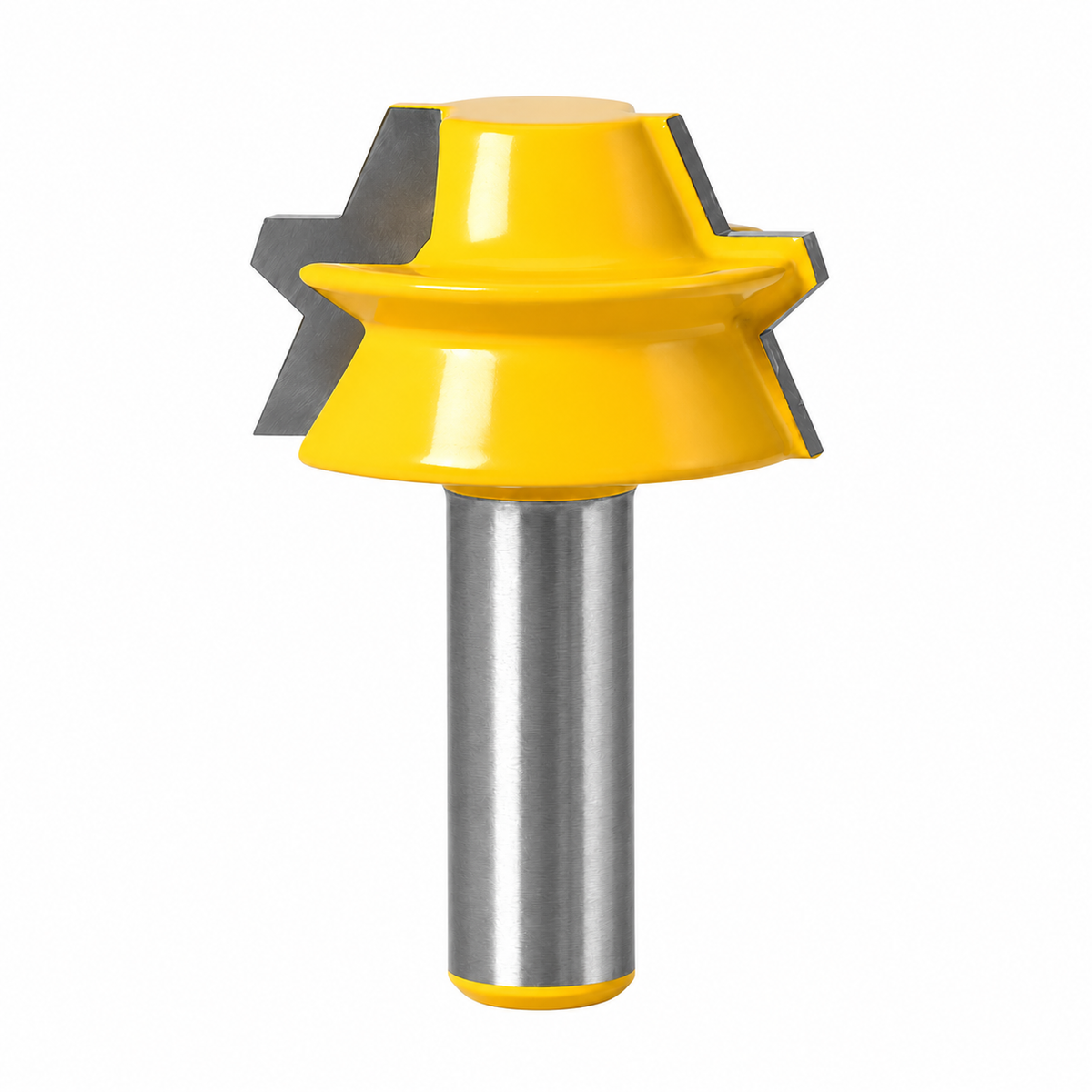

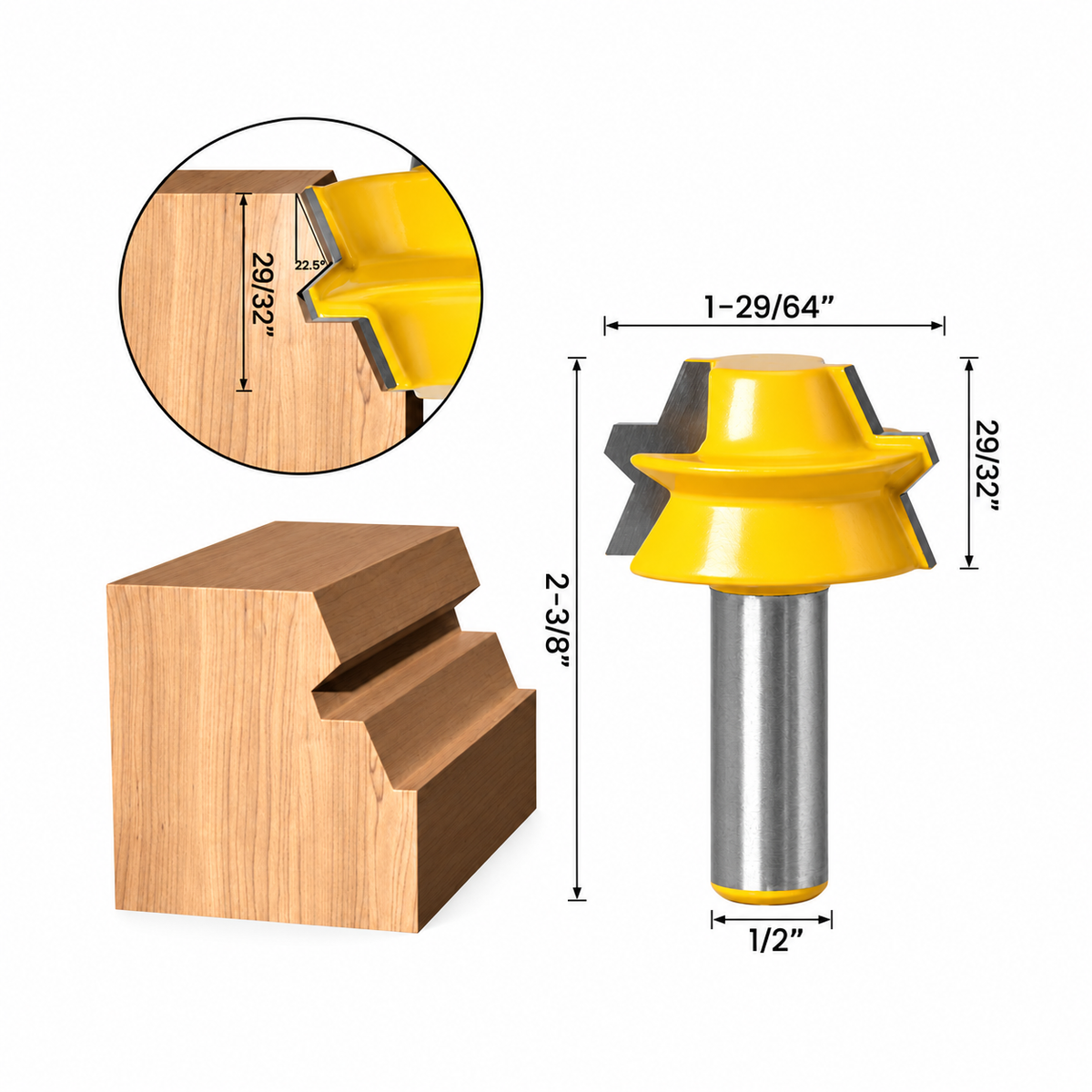

Projecting cutting profile
Suitable materials
For woodworking applications in solid wood, MDF, plywood, particleboard and laminate. Do not use for cutting metal.
What's included
2 × complementary 22.5° lock miter tenon router bits with 1/2" shanks.
Before use: follow the tool manufacturer's setup and operating instructions, check compatibility with your stock and router, and make a test joint in scrap material.
